Value Sets: Independent, Dependent, Table

Value Sets: Independent, Dependent, Table

To demonstrate different types (Independent, Dependent and Table) of value set let’s first define a concurrent program.
1. Define Executable.
Navigation: Application Developer > Concurrent > Executable
Conc Prog 1
Enter Information as below
Note: You don’t really need to have PLSQL package defined for this demo.
Conc Prog 2
Save it.
Navigation: Application Developer > Concurrent > Program
Conc Prog 3
Enter Information as below
Conc Prog 4
Save it.
Assign this Concurrent program to “Application Developer” responsibility by adding it to Request group
Conc Prog 7
Note: Form more information about defining concurrent program and adding it to request group follow the below tutorial
http://erpschools.com/articles/concurrent-program-registration-and-add-it-to-request-group
Now Start Defining Value Sets.
Independent Value Set:
Navigation: Application Developer > Application > Validation > Sets
value sets 1
value sets 2
Enter information as below
value sets 3
Save it.
value sets 4
Create Values for the value set we defined above
Navigation: Application Developer > Application > Validation > Values
value sets 5
Enter information as below
value sets 6
Save it.
Attach this value set to Concurrent program parameter
Navigation: Application Developer > Concurrent > Program > Parameters
Conc Prog 4
Enter information as below
Conc Prog 5
Save it.
To test the value set try submitting the concurrent program
Navigation: Application Developer > View > Requests > Submit New Request > Single Request > OK
Conc Prog 9
Conc Prog 10
Enter Concurrent Program Name that we defined at the beginning of this tutorial
Conc Prog 11
Click on LOV button to see the values available for this parameter.
Conc Prog 12
———————————————————————————
Dependent Value Set
To define a Dependent value set we also need one Independent value set.
Example: To List down States in a Country we need to have list of Countries for which states need to be defined.
First Define list of countries in a independent value set
Navigation: Application Developer > Application > Validation > Sets
value sets 8
Enter Values for the above value set

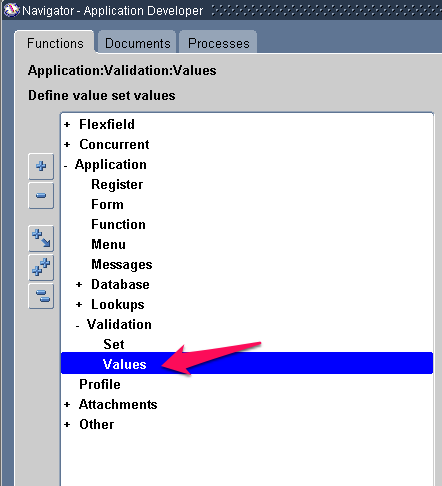

Navigation: Application Developer > Application > Validation > Values
value sets 9
Enter Values in the below screen
value sets 10
Now define another Value set
Navigation: Application Developer > Application > Validation > Sets
value sets 11
Click Edit Information Button to link this Dependent Value set with Independent Value set defined in previous step
value sets 12
Enter Values for each country
Navigation: Application Developer > Application > Validation > Values
Ensure to Select Country name in “Independent Value” field before click Find.
value sets 13
Click Find and enter states for Country India
value sets 14
Save it
Now repeat the above two steps to enter states of country USA
value sets 15

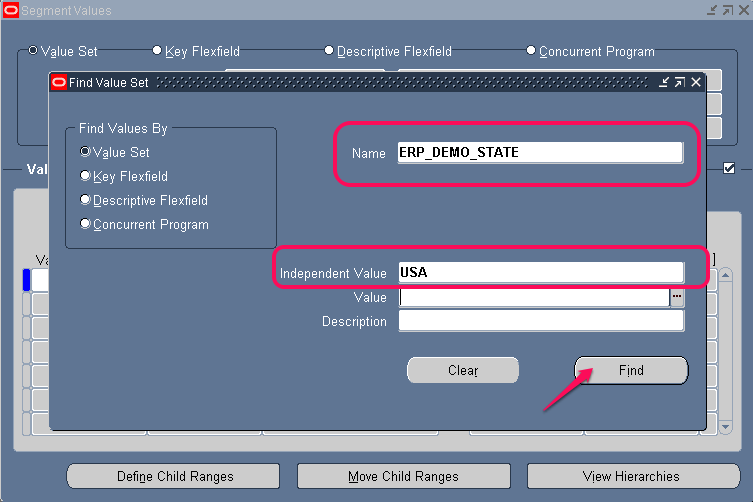

Ensure to select country as USA before clicking Find button
value sets 16
Save it.
Navigate to Concurrent Program Parameters screen and enter Country parameter as shown below
Navigation: Application Developer > Concurrent > Program > Query our Concurrent Program > Parameters
Conc Prog 13
Save it.
Add another parameter to link State Value set as shown below
Conc Prog 14
Save it.
To test “Dependent Value set” navigate to concurrent program submission window
Conc Prog 15
Select country and you can observe that list of values in State parameter will change automatically depending on value select in Country parameter field.
Conc Prog 16
Conc Prog 17
——————————————————————————–
Table Type Value Set
Navigation: Application Developer > Application > Validation > Sets
value sets 18
Select Validation type as “Table” and click Edit Information button
Enter information as below
value sets 19
Click Test button validate the information that is entered
value sets 20
Navigate to Concurrent Program Parameters screen and add fourth parameter
value sets 21
Navigate to Concurrent Program Submission window to check the list of values in Parameter-4
Click LOV button on Order Number field to see list of values available from OE_ORDER_HEADERS_ALL table.
These values change dynamically as data changes in the OE_ORDER_HEADERS_ALL table.
Conc Prog 18
